Plantstatus - A houseplant with a kafka pipeline

What ?

Plantstatus is a small home project that tells me whether my plant needs water and whether or not it is light where it is at. An ESP32 reads a soil moisture sensor and a light sensor, and the readings flow through a proper streaming pipeline into a Grafana dashboard. You can see the live dashboard on the Plant Status page.

Why ?

I like taking care of my houseplants, it just so happens that most of them are monsteras or succulents which should not be watered too often. I found myself thinking, if I had actually watered them or not quite frequently.

But mainly I wanted an excuse to overengineer something, and a friend of mine just so happened to have a moisture sensor laying around. I know this is not a valid use case for kafka, but I thought it would be fund to handle it as if it was.

The project exists to learn kafka hands-on, not because a plant needs a distributed log. Along the way I also picked up some MicroPython and basic electronics, neither of which I'd touched before. I also got familiar with how much of a chore it is to solder.

How ?

Architecture

ESP32 → HTTP POST → FastAPI → Kafka → consumer → TimescaleDB → Grafana

The ESP32 reads both sensors on a loop and POSTs the raw values to a small FastAPI service. That service owns the Kafka producer and puts each reading on a topic - it does no storage itself, so it stays thin and fast to respond to. A separate consumer process subscribes to that topic and writes every reading into TimescaleDB (Postgres with the timescaledb extension). Grafana then reads from a continuous aggregate - the readings pre-bucketed into 10-minute windows - and serves the dashboard, embedded directly on this site as an iframe.

Splitting ingestion (the API) from storage (the consumer) via Kafka in the middle means either side can go down without losing data - readings just queue up on the topic until the consumer is back. Total overkill for a plant that won't notice a missed sensor reading, but it's exactly the failure mode you want decoupled in a real system.

The hardware side

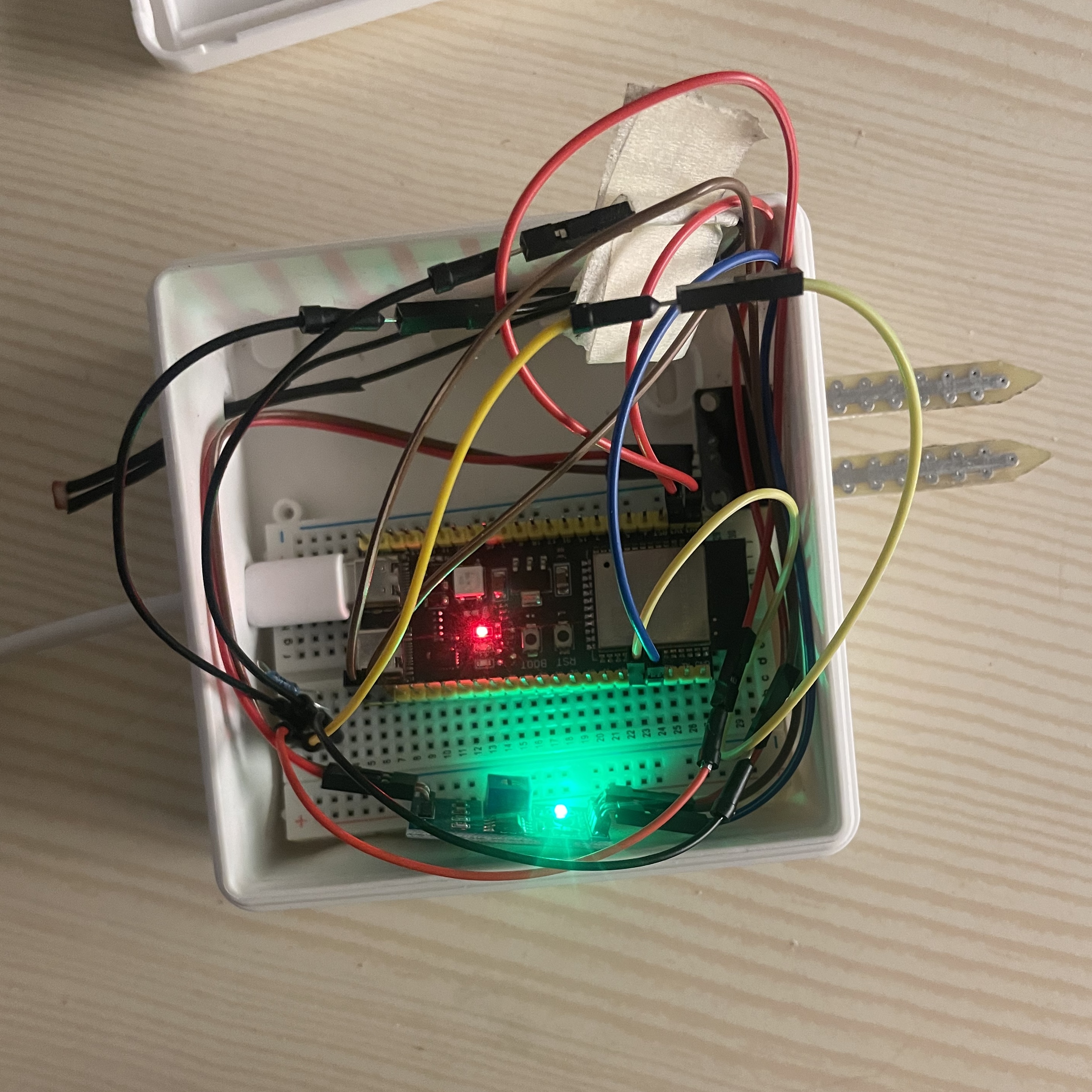

This was the part I found hardest, having never really dealt with electronics before. A capacitive soil moisture sensor and an LDR light sensor both feed into the ESP32's ADC pins through a breadboard, with a resistor on each to pull the readings into a usable range - without them, both sensors basically just read near the max value regardless of actual conditions.

The firmware itself is MicroPython: connect to WiFi, read both ADC pins in a loop, send the raw values as JSON over HTTP, sleep a second, repeat. No on-device logic beyond that - all the calibration and interpretation happens downstream, which keeps the ESP32 side trivial to reason about and easy to iterate on without reflashing constantly.

Getting it into the plant

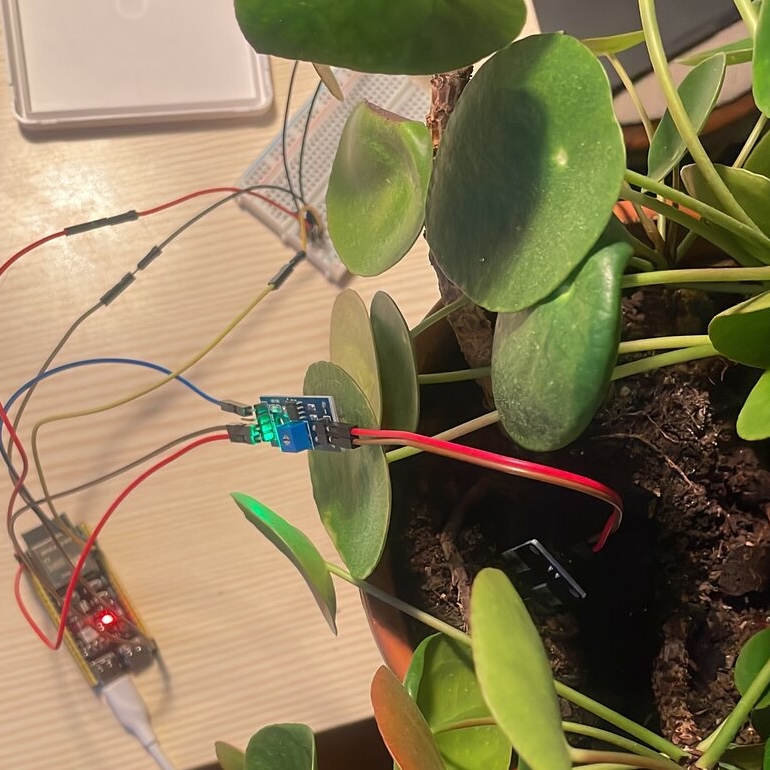

Once the wiring was proven out on a breadboard, the sensors moved into the actual pot.
